Monitor Professionale 65″ FULL HD con mediaplayer usb service/noleggio/rental

Monitor Professionale 65″ FULL HD con mediaplayer usb service/noleggio/rental

SAMSUNG ED65E

1449562404442_ED65E

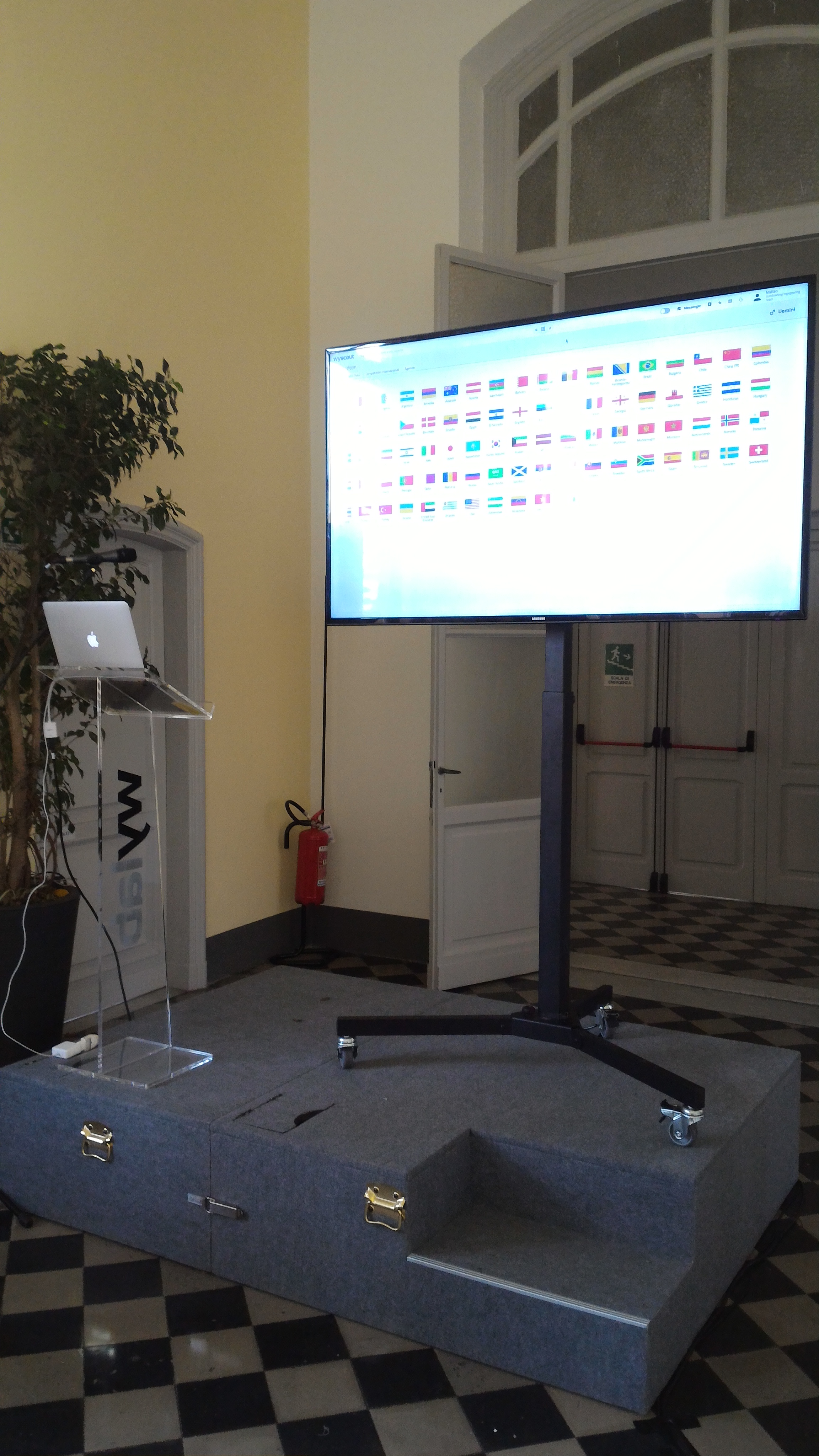

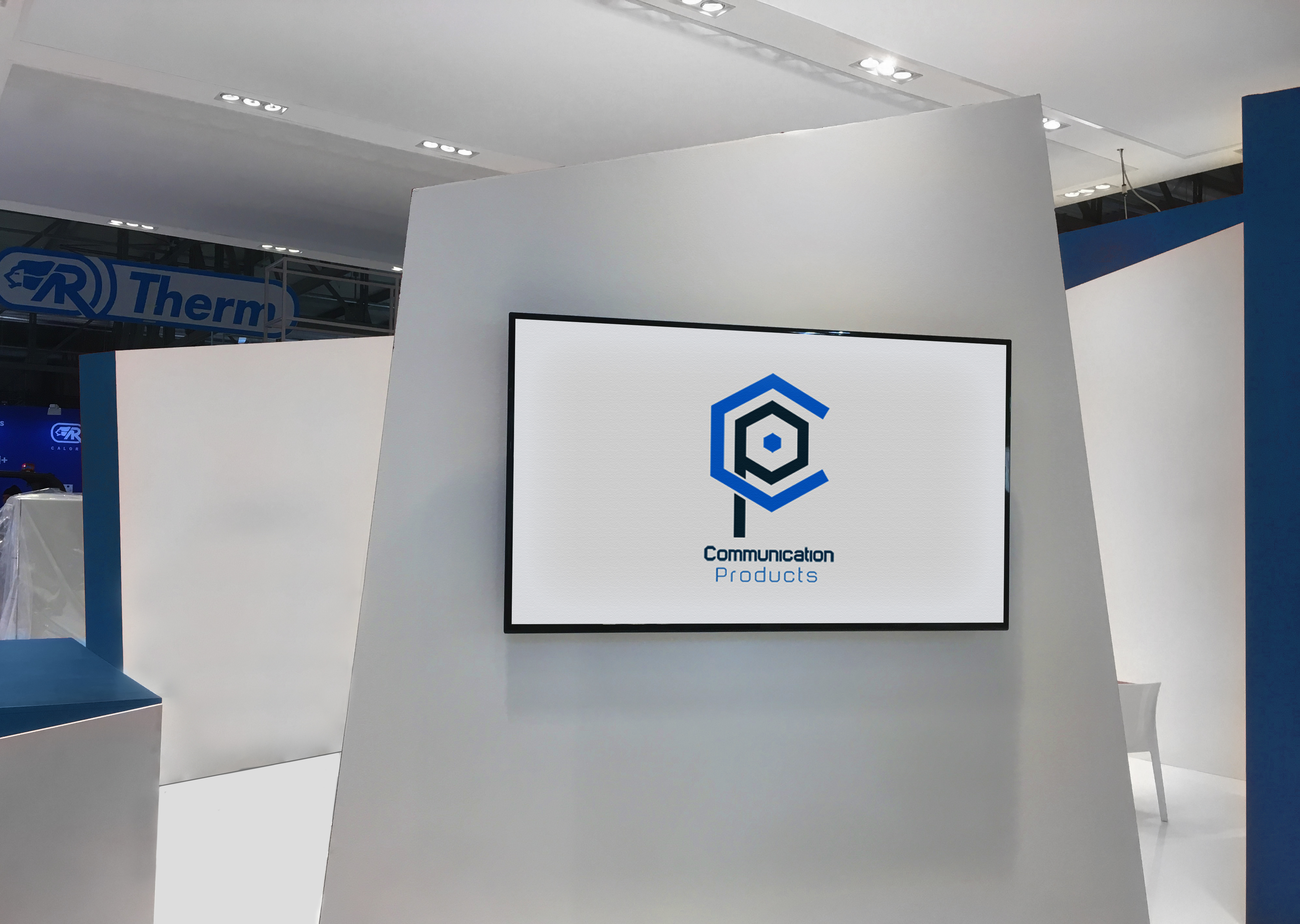

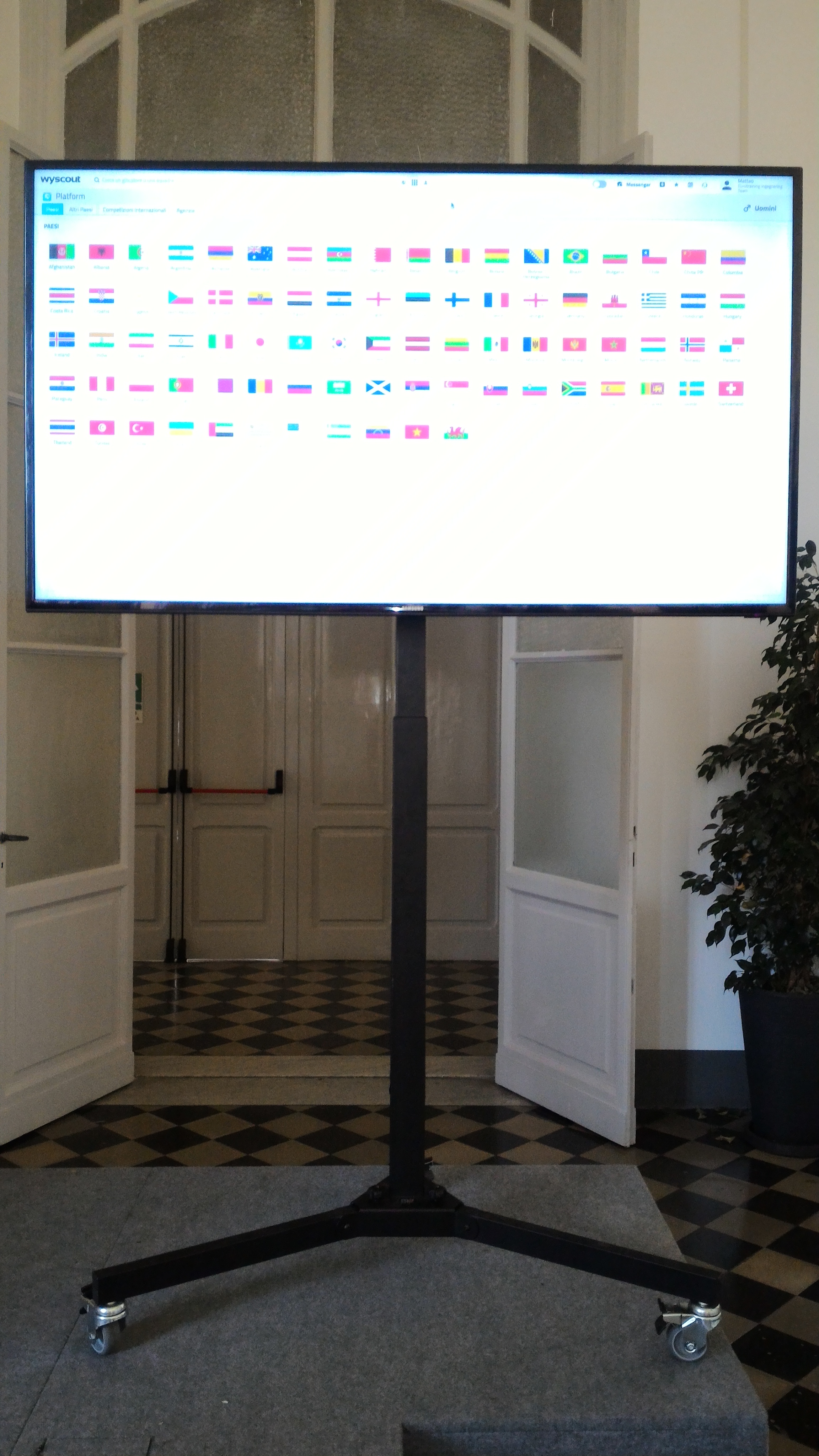

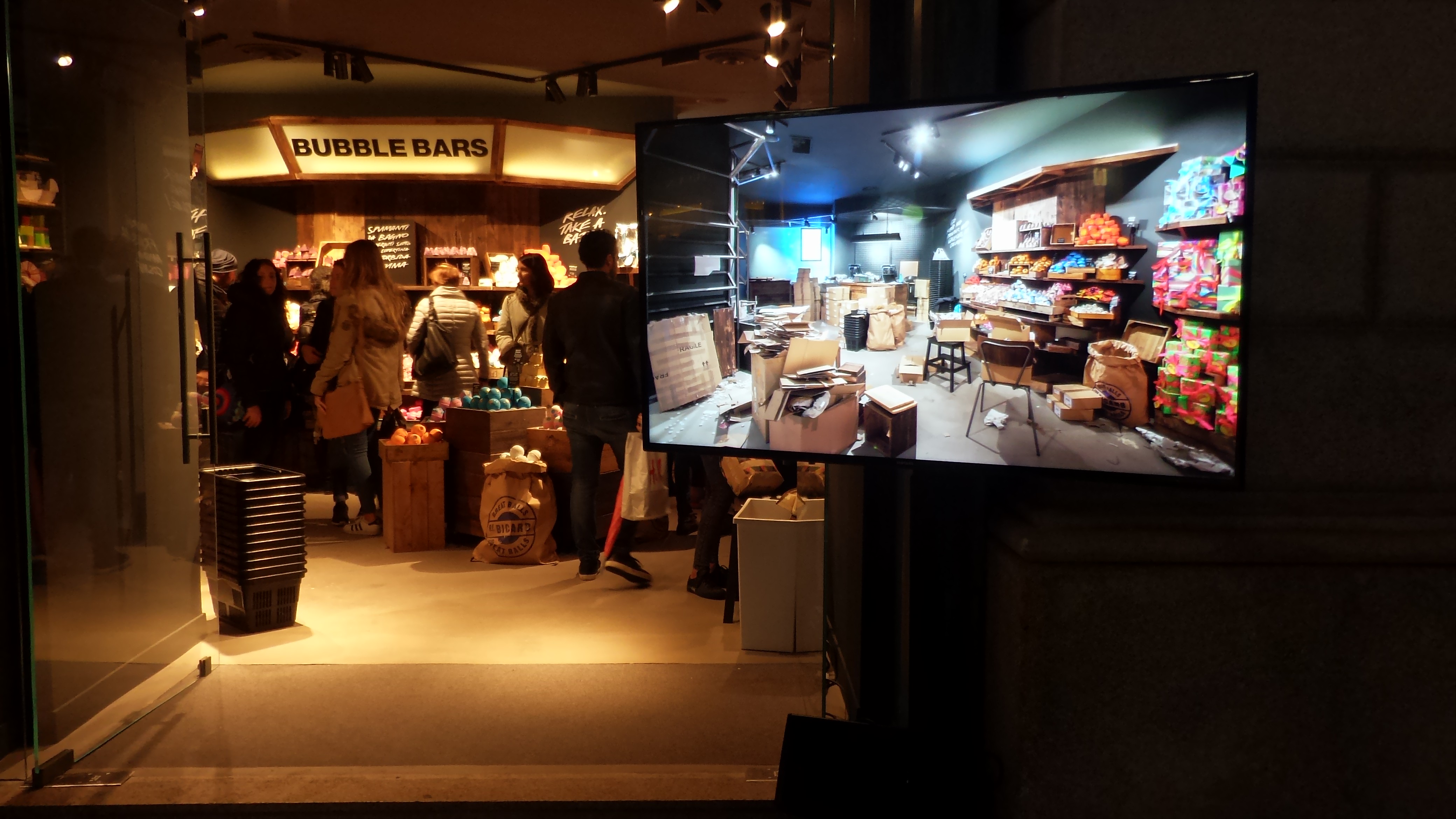

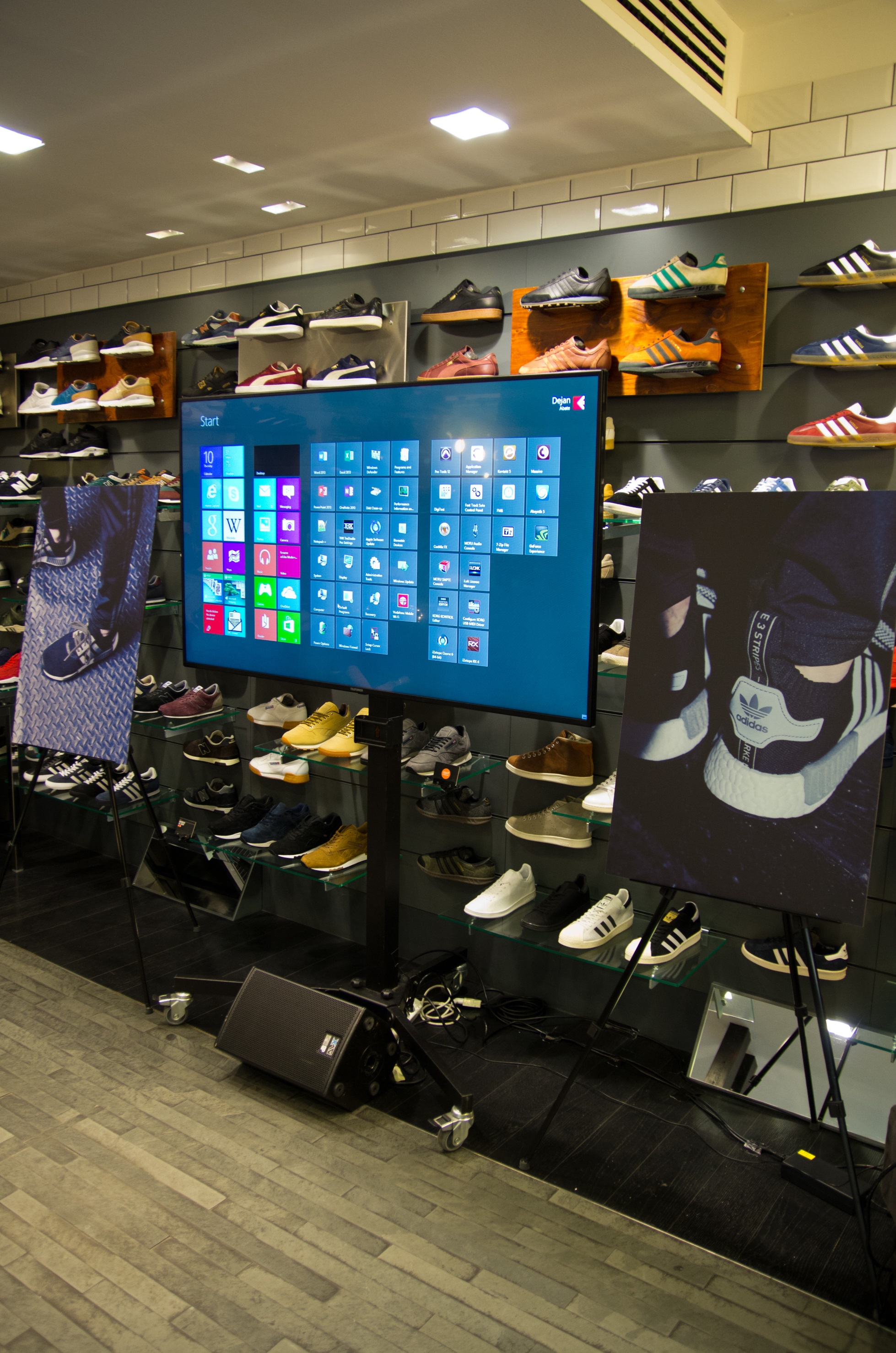

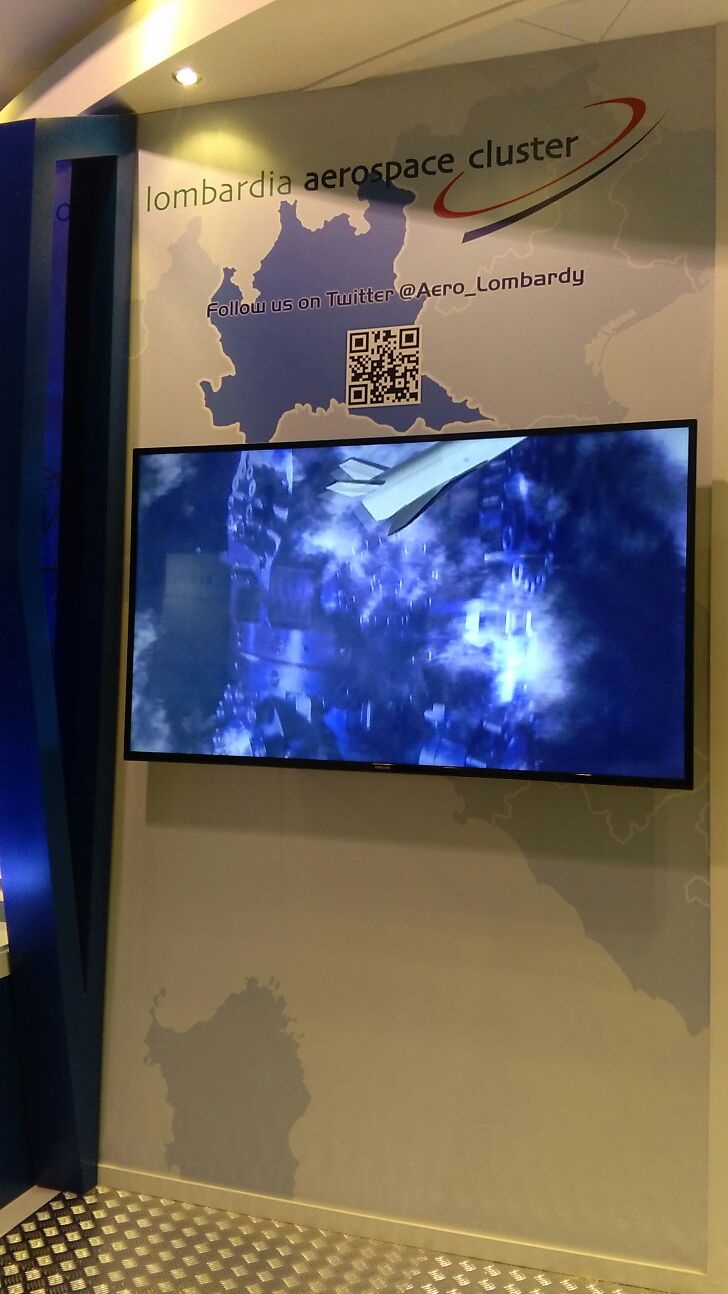

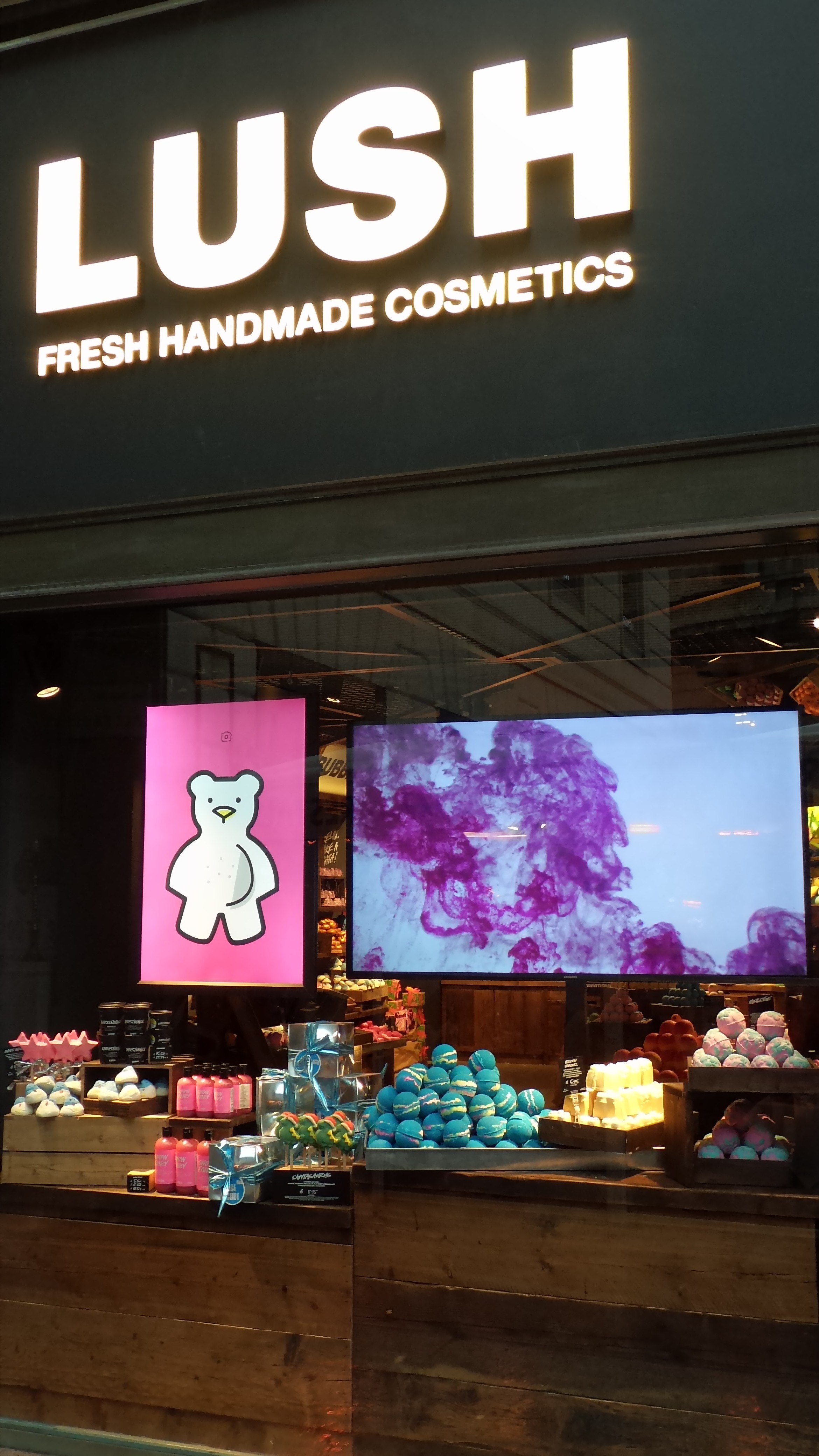

Noleggio ed Installazione monitor professionali 65 pollici

Professional digital signage with superior image quality

noleggio per showroom – fiere – eventi – stand – partite

service di noleggio ed installazione monitor per fiere eventi convegni convention



Mechanical Specification


Dimension (mm) Set 1467.4x848x56.2
Package
Weight (kg) Set 27.4 KG
Package 35.4
VESA Mount 400*400mm
Protection Glass N/A
Stand Type Foot Stand (Optional)
Media Player USB
Bezel Width (mm) 18.0mm(Bottom 23.5mm)

Panel


Diagonal Size 65″ Type 60Hz LED BLU
Resolution 1920 X 1080(FHD) Pixel Pitch(mm) 0.744(H) × 0.744(V)
Active Display Area(mm) 1428.48(H) x 803.52(V) Brightness(Typ.) 400 nit
Contrast Ratio 4000:1 Viewing Angle(H/V) 178:178
Response Time(G-to-G) 6ms Display Colors 10bit Dithering – 1.07Billion
Color Gamut 70% Haze N/A

Display

Dynamic C/R Mega. DCR (AV Mode) H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ Maximum Pixel Frequency 148.5MHz
  •
  • Active Display Area(mm)1428.48(H) x 803.52(V)

Sound


Speaker Type Built in Speaker(10W + 10W)

Connectivity


Input RGB Analog D-SUB (VGA) , DVI-D
Video CVBS, Component, HDMI
Audio Stereo mini Jack
Usb USB Player
Output RGB N/A
Video N/A
Audio Stereo mini Jack
Power Out N/A
External Control RS232C(in/out) thru stereo jack
External Sensor Yes
Tuner N/A

Power


Type Internal
Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption Max[W/h] 253.0
Typical[W/h] 180.0
BTU(Max) 862.73
Sleep mode less than 0.5W
Off mode less than 0.5W











Operation


Recommended Usage Hours 16/7
Operating Temperature 0.0  ℃  ~   40.0   ℃ Humidity 10.0  %  ~   80.0   %

Feature


Key Features LED LFD
Special Features Built in Speaker(10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out
1 D-Sub & 1 HDMI, USB Player
Internal Player Processor N/A
On-Chip Cache Memory N/A
Clock Speed N/A
Main Memory Interface N/A
Graphics N/A
Storage (FDM) N/A
Multimedia N/A
IO Ports N/A
Operating System N/A

Certification


Safety UL(USA) : cUL60950-1, CSA (Canada):cUL60950-1, TUV (Germany) : IEC60950-1/EN60950-1, NEMKO (Norway): IEC60950-1/EN60950-1, CB (Europe) : IEC60950-1/EN60950-1, KC (Korea) : K 60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1 , EAC (Russia) : EAC+IEC60950-1 , NOM (Mexico ) : NOM-001-SCFI-1993 , IRAM (Argentina ) : IRAM+IEC60950-1 , SASO (Saudi Arabia ) :SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, INMETRO (Brazil):INMETRO+IEC60950-1, BSMI(Taiwan):BSMI+IEC60950-1, RCM
EMC FCC (USA):Part 15, Subpart B Class A, CE (Europe) :EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003, VCCI (Japan): VCCI V-3 /2010.04 Class A , KCC/EK (Korea):KN13 / KN20, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) , C-Tick (Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008 GB17625.1-2012 , GOST(Russia/CIS):GOST R 51317 Series,GOST 22505-97.EN55022:2006+A1:2007.EN55024:1998+A1:2001+A2:2003
Environment N/A

Accessory


Included Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional Stand STN-L6500E
Mount WMN6575SD
Specialty CML450D (Ceiling Mount)
