Technical specifications
- Features:
- Plug-and-Play, driver free & power free
- HDMI in, and USB 3.1 Gen1(USB3.0) out
- Automatic input signal detection, up to 1080p60
- Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
- Comply with UVC video capture and YUY2 video output
- Comply with UAC audio out from HDMI embedded audio or line in
- Compatible with Windows, Linux, macOS
- Compatible with OBS, ZOOM, Teams & Twitch, etc
- Specifications:

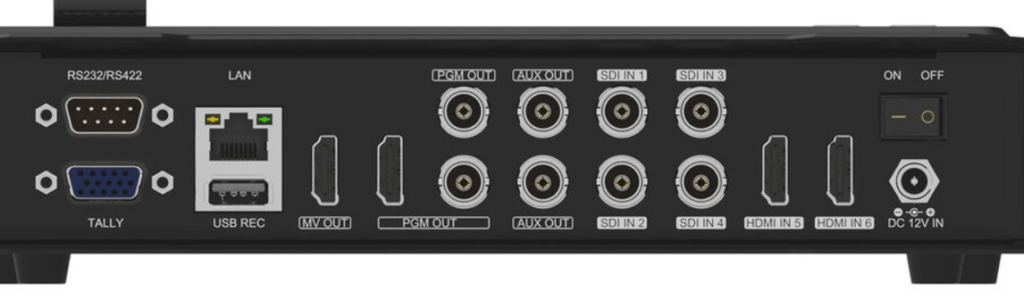

- Connections
- Video Input: 4x SD/HD/3G-SDI(75ω), 2x HDMI type-A(100Ω)
- Media Port: USB Type-A
- Stream Output: Lan
- Capture Output: USB Type-C
- PGM Output: 2x HD/3G-SDI(75ω), 1x HDMI type-A
- Multiview Outputs: 1xHDMI Type-A(100ω)
- AUX Outputs: 2x 3G-SDI(75Ω), Including IN1~6, PVW, PGM, Color Bar, Multiview
- Audio Input: 2x MIC
- Audio Output: 1x Line, 1x Earphone Slot
- Camera Control Port: LAN, RS-232/ RS-422/ RS-485
- Tally Port: DB-15
- Power In: DC 12V
Stream & Recording - Bitrate: 2M-32Mbps
- Rate Control: CBR/VBR
- Stream Protocols: RTMP(S)/ RTSP/ SRT
- REC SD Card Format: FAT32/ exFAT/ NTFS
- REC USB Disk Format: FAT32/ exFAT/ NTFS
- REC File Segment: 1~120mins
Function - Transitions: T-Bar/ AUTO/ CUT
- Effect: WIPE(11×3 patterns)/ Mix/ DIP/ STILL(freeze)/ FTB
- Multiviewer Layout: Landscape & Portrait Mode
- Upstream Key: 1x Chroma Key, 2x PIP, POP
- Downstream Key: 1x DSK, 1x Logo
- Audio Function: AFV, Mix, Audio Delay
- Logo Library: Up to 8 PNG Images
- Record: USB Disk, Sd Card, Record for PGM yp to 1080p60
- Display: 5in HD LCD Display
Physical - Power: DC 12V 1.5A, 18W
- Dimensions (LxWxD): 9.3″ x 6.62″ x 1.87″ (238.5mm x 168.2mm x 47.5mm)
- Weight: 3.19lbs (1.44kg)
- Item Includes:
- 1x AVMatrix Shark S6 Video Switcher
- 1x 12v 3A Power Supply
- 1x Type A – C USB Cable
- 1x Tally Connector (DB-15)
- 1x Handbag
